Description

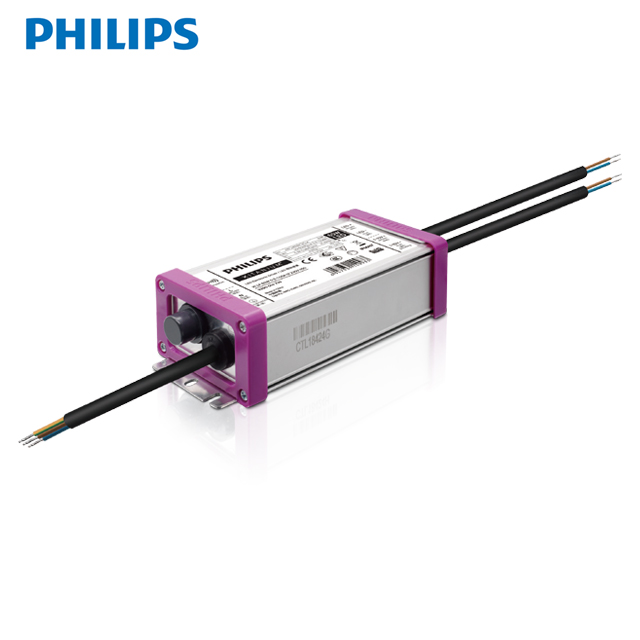

Philips Xitanium Outdoor LED Driver 1-10V Xi LP 65W 0.3-1.05A S1 230V I150 929001473980
Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.
Product Description
Specification
|
item
|
value
|
|
Warranty(Year)
|
5-Year
|
|
Lighting solutions service
|
Lighting and circuitry design
|
|
Place of Origin
|
China
|
|
Brand Name
|
PHILIPS
|
|
Model Number
|
Xi LP 65W 0.3-1.05A S1 230V I150
|
|
Output Power
|
2.5~65W
|
|
Rated input voltage
|
230Vac
|
|
Rated input frequency range
|
45~63Hz
|
|
Output voltage max.
|
130V
|
|
Rated input current
|
0.3A
|
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Energy savings through high efficiency and via a choice of dimming options
• Balanced configurable feature set covering the most common applications
Features
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating
windows (AOC)
windows (AOC)
• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne Interface
Application
• Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
