Description

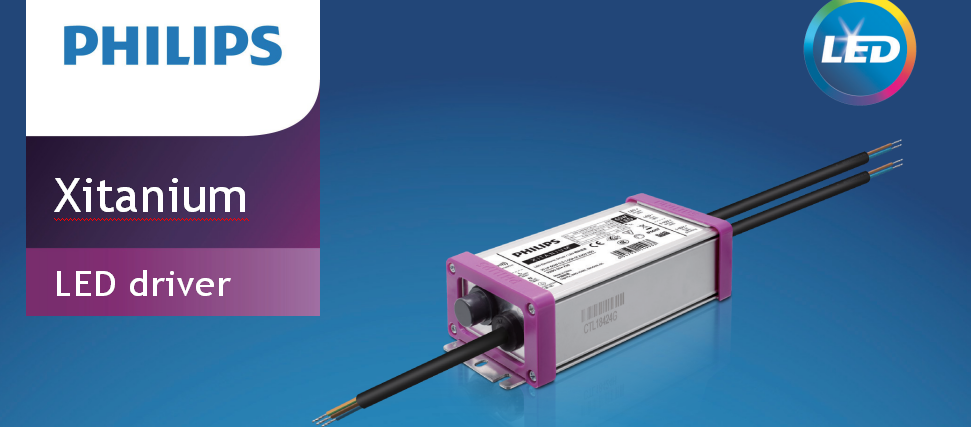

PHILIPS Xitanium driver Xi LP 40W 0.3-1.05A S1 TWE I175 929002103480
Xitanium Outdoor LED Drivers Independent 1-10V
Xi LP 40W 0.3-1.05A S1 TWE I175
Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio ouers high flexibility with a customizable operating window, enabling diuerentiation in LED lighting designs via system tuning and being prepared for LED ePcacy upgrades.
In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which ouer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.
Programmable features
| Specification item | Value | Remark | Condition |
| Set output current (AOC) | See Design-in guide | Default output current: = 700 mA | |
| Constant Lumen Over Lifetime (CLO) | Yes | ||
| Diagnostics | Yes | ||
| Dynadimmer | Yes |
Features
| Specification item | Value | Remark | Condition |
| Open load protection | Yes | Automatic recovering | |
| Short circuit protection | Yes | Automatic recovering | |
| Over power protection | Yes | Automatic recovering | |
| Hot wiring | No | ||
| Suitable for fixtures with protection class | I | per IEC60598 | |
| Over temperature protection driver | Yes | Automatic recovering | |
| Overheating protection | Yes | Automatic recovering |
PRODUCT FAMILY
| 929002103380 | Xi LP 40W 0.3-1.05A S1 230V I150 |
| 929002103480 | Xi LP 40W 0.3-1.05A S1 TWE I175 |
| 929002115780 | Xi LP 100W 0.3-1.05A S1 230V I175CF |
| 929002115080 | Xi LP 100W 0.5-1.5A S1 230V I175 |
| 929002115280 | Xi LP 100W 0.5-1.5A S1 230V I175CF |
| 929002115580 | Xi LP 150W 0.3-1.05A S1 230V I175CF |
| 929002114980 | Xi LP 150W 0.5-1.5A S1 230V I175 |
| 929002115180 | Xi LP 150W 0.5-1.5A S1 230V I175CF |
| 929002104480 | Xitanium 240W 3.6-6.7A AOC 230V I240 |
