Description
Specification
|
Setting Information
|
|
|
Item name
|
Xitanium 200W 2.8-5.6A AOC 230V I250
|
|
12NC
|
929001404680
|
|
Input Voltage
|
220-240V
|
|
Output Voltage
|
18-71Vdc
|
|
Output Frequency
|
50Hz/60Hz
|
|
Output Current
|
2.8-5.6A
|
|
Efficiency
|
91.5%
|
|
Shelf life
|
5 years
|

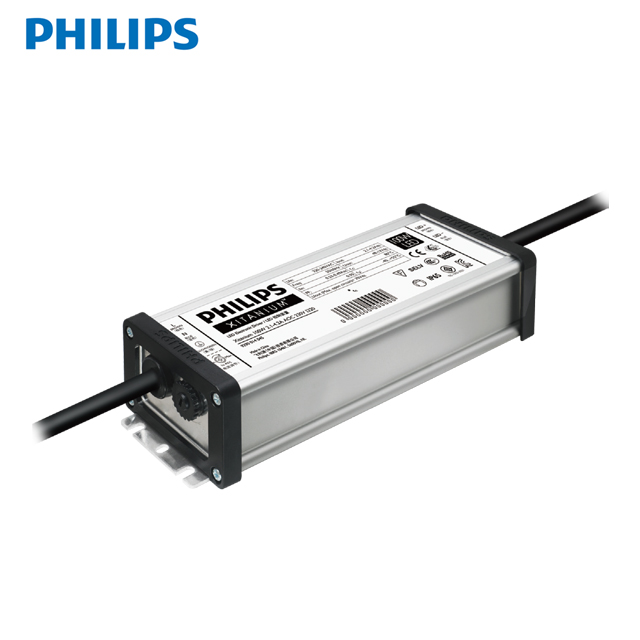

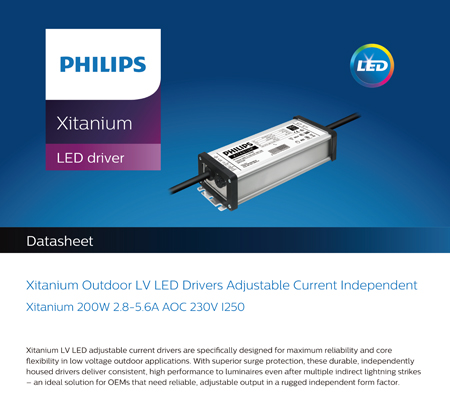

Xitanium 200W 2.8-5.6A AOC 230V I250
Xitanium LV LED adjustable current drivers are specically designed for maximum reliability and core exibility in low voltage
outdoor applications. With superior surge protection, these durable, independently housed drivers deliver consistent, high
performance to luminaires even after multiple indirect lightning strikes – an ideal solution for OEMs that need reliable,
adjustable output in a rugged independent form factor.
Benefits
• Low voltage/high current output fits the application of LED strings connecting in parallel
• IP rated housing could be put into
a gearbox without fully sealed
• Quick solution without luminaries re-design (perfect for tunnel lighting application)
• AOC(Adjustable Output Current) gives the full flexibility to output different currents to spec-in different projects
• Easyadjustment of output current/voltage by only one screwdriver
• Robust specifications for moisture, vibration and extremetemperature protection
• Consistent quality of light over life cycle
Features
• Robust anti-surge protection
• Outrush current limitation to protect module
• Adjustable output current with wide window
• High lifetime warrantee at Tc Max and Tc Lifetime
Applications
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
